Sizes : 4" - 24"
Pressure rating : 250 psi -25000 psi

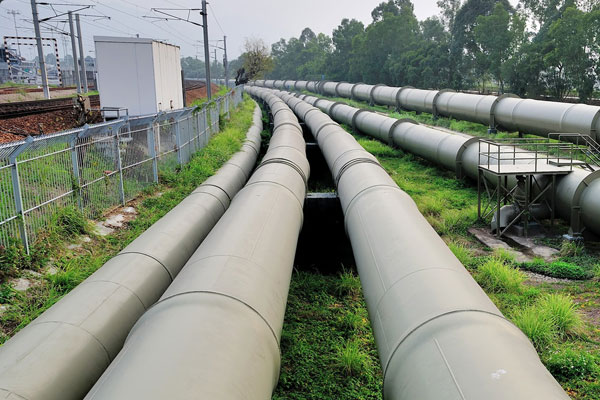

Usage/Application: Transportation of Drinking Water, Soil and Waste Sewage Treatment
Working Pressure: 4kg & 6kg
| Pipe Type | Pressure | kr | Lr | Safety Factor | |||
|---|---|---|---|---|---|---|---|
| S-E | S-S | S-E | S-S | S-E | S-S | ||
| D = 450 mm, t = 8.6 mm | 16.88 bar | 0.325 | 0.197 | 0.106 | 0.106 | 2.99 | 4.72 |
| D = 500 mm, t = 9.1 mm | 17.21 bar | 0.324 | 0.227 | 0.115 | 0.115 | 2.99 | 4.14 |
| D = 600 mm, t = 9.9 mm | 16.74 bar | 0.378 | 0.270 | 0.122 | 0.122 | 2.58 | 3.56 |
| D = 800 mm, t = 11.7 mm | 6.99 bar | 0.211 | 0.143 | 0.057 | 0.057 | 4.64 | 6.73 |
