Steel Grade: SY295, SY390, SYW295, SYW390, Q345, Q295PC, Q345P, Q390P, Q420P, Q460P etc.

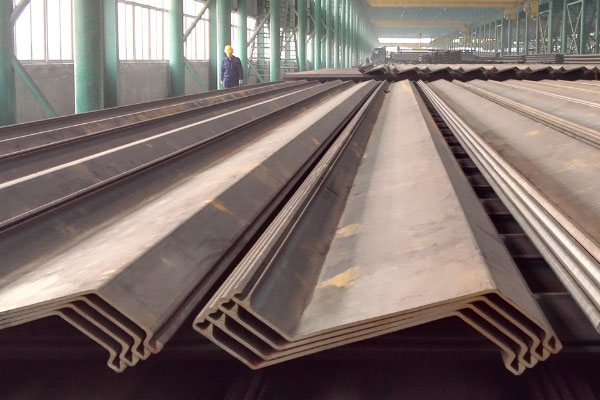

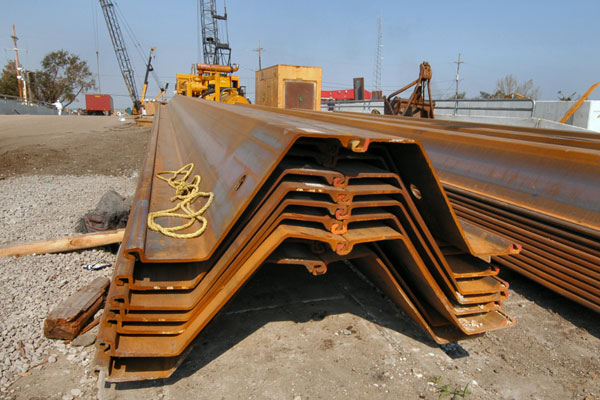

Sheet pile Type: Z Pile、U shaped sheet pile、straight Web sheet piles
Length: 6m, 9m, 12m, 14m etc. Large quantity can be customized
Usage:
Steel sheet piles are widely used in permanent structures, and can be used for docks, unloading yards, retaining walls, building bridges, etc.
| Section | Dimensions | A | Gsp | Gw | Iy | Wel,y | Sy | Wpl,y | |||
| b | h | tf | tw | ||||||||
| mm | mm | mm | mm | cm2/m | kg/m | kg/m2 | cm4/m | cm3/m | cm3/m | cm3/m | |
| AZ 182) | 630 | 380 | 9.5 | 9.5 | 150 | 74.4 | 118.0 | 34 200 | 1 800 | 1 050 | 2 104 |
| AZ 18‑10/10 | 630 | 381 | 10.0 | 10.0 | 157 | 77.8 | 123.0 | 35 540 | 1 870 | 1 095 | 2 189 |
| AZ 262) | 630 | 427 | 13.0 | 12.2 | 198 | 97.8 | 155.0 | 55 510 | 2 600 | 1 530 | 3 059 |
